iOS Connected document

SDK Support Platform

• iOS Version 12.0 or higher
• WatchOS Version 6.0 or higher(Not supported by default. If you need support, please contact your business colleagues to apply.)

Permissions

The following permissions need to be added to Info.plist

• NSBluetoothAlwaysUsageDescription

• NSBluetoothPeripheralUsageDescription

If you want to run in the background, you also need to add the following permissions:

• App communicates using CoreBluetooth

• App shares data using CoreBluetooth

App Privacy

https://developer.apple.com/documentation/bundleresources/privacy_manifest_files/describing_use_of_required_reason_api

Import SDK

the SDK will be released as xcframework after version 1.3.1.

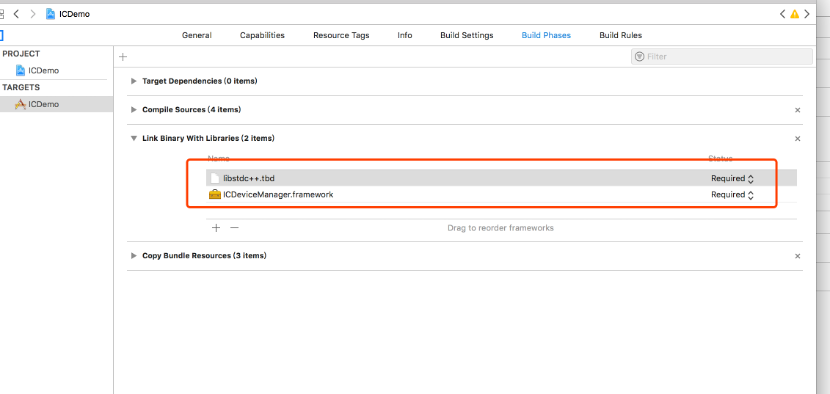

Old: framework

Please import the frameworks in Build Phases

Welland's framework

ICDeviceManager.xcframework

System's framework

libc++.tbd

libz.tbd

Eg.

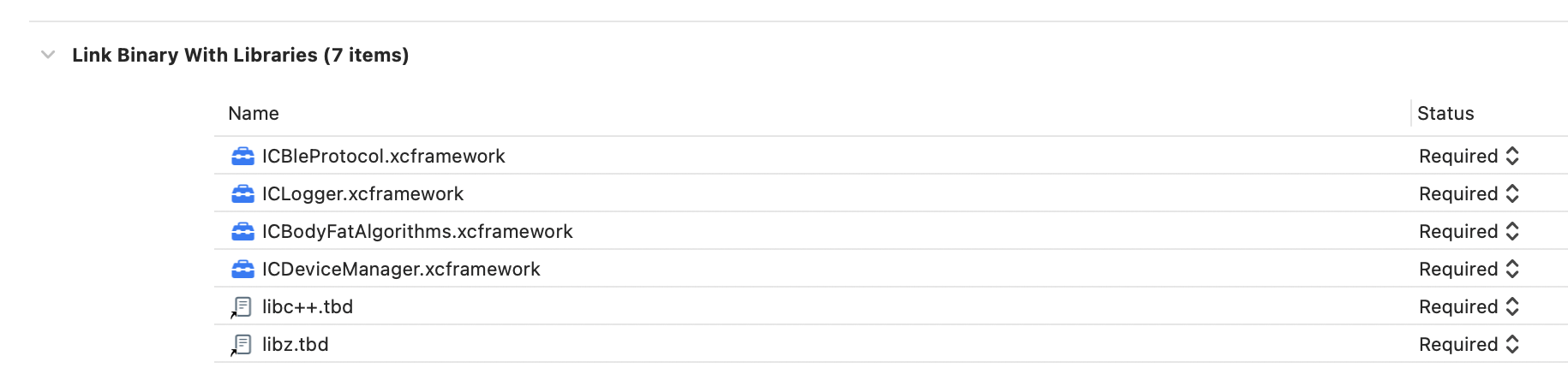

New: xcframework

Please import the frameworks in Build Phases

Welland's framework

ICBleProtocol.xcframework

ICBodyFatAlgorithms.xcframework

ICDeviceManager.xcframework

ICLogger.xcframework

System's framework

libc++.tbd

libz.tbd

Eg.

Add header file reference

In the file that needs to call ICDeviceManager, add a header file reference.

import <ICDeviceManager/ICDeviceManager.h>

SDK Access process

Initialize the SDK

Call [[ICDeviceManager shared] initMgr] to initialize the SDK. Before initialization, it is recommended to call [ICDeviceManager shared].delegate to set up the proxy object. Otherwise, some callbacks may be lost.

Eg.

[ICDeviceManager shared].delegate = self;
[[ICDeviceManager shared] initMgr];

Scan device

After the SDK is initialized, if you need to find nearby devices, you can call the scanning function to scan the devices:

[[ICDeviceManager shared] scanDevice:delegate];

The device will call back through the scan callback proxy object. (Before calling the scan function, please make sure Bluetooth is turned on, otherwise the function will not take effect.If Bluetooth is turned off during scanning, turning on Bluetooth and call the function again, the SDK will not automatically turn on scanning).

Note: If you have the MAC address of the device, you can call addDevice function without call the scanDevice function. The SDK will automatically connect to device.

Stop scanning

The scanning device function is called. After the device has been found, please call to stop scanning (sdk will not stop automatically):

[[ICDeviceManager shared] stopScan];

Add device

If the device has been found, call the add device function:

[[ICDeviceManager shared] addDevice:device callback:^(ICDevice *device ICAddDeviceCallBackCode code) {}];

The function can be used to connect the device to the SDK and receive device data (please ensure that the device is powered on, If the device is disconnected, the SDK automatically connects to the device. There is no need to re-add devices or scan devices).

Remove device

When you do not want the SDK to connect and receive device data, you can call the remove device function:

[[ICDeviceManager shared] removeDevice:device callback:^(ICDevice *device, ICRemoveDeviceCallBackCode code) {
}];

Update user information

Because the user's bodyfat data and some other data need to be calculated, the App needs to call the update user information interface：

[[ICDeviceManager shared] updateUserInfo:userInfo];

Log directory

If the SDK cannot receive data or the connection is abnormal, please send us the SDK log and obtain the SDK log directory:

[[ICDeviceManager shared] getLogPath];

Device setting function

Some devices support change units or other setting. These setting interfaces are obtained by:

[[ICDeviceManager shared] getSettingManager];

Body fat algorithm function

Get the body fat algorithm function:

[[ICDeviceManager shared] getBodyFatAlgorithmsManager];
